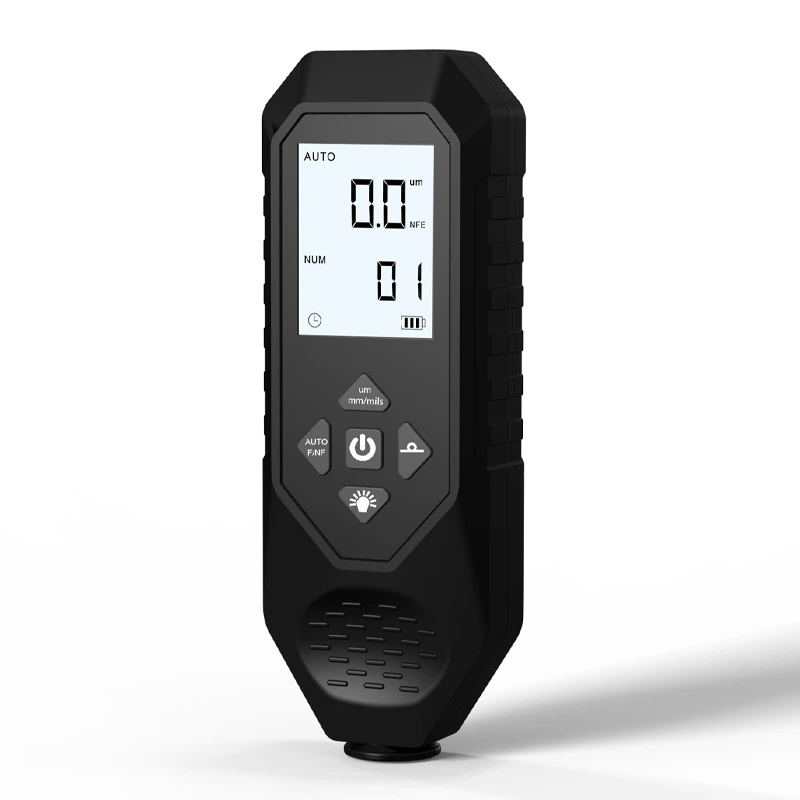

Thickness Gauge

Integrating multiple advanced measurement technologies including magnetic induction and eddy current, this thickness gauge adopts a contact measurement mode, which can meet the measurement needs of iron, aluminum and other materials. Its core advantages are prominent: equipped with a high-precision sensor and a digital processing chip, it features strong data repeatability, effectively avoiding human measurement errors; with a portable design, the device is compact and lightweight, operable with one hand, supporting on-site mobile testing.

Model:

DM328

Material:

ABS

Color:

Black

Product size:

43.9 x 22.2x 122.5mm

Inquiry

Write a Review

Product Description

Product Specifications

Size	43.9 x 22.2x 122.5mm ( 1.73 x 0.87 x 4.82 Inches )
Probe Mode	Magnetic induction mode, eddy current mode
Measuring Principle	Magnetic induction, eddy current effect
Measuring Range	0-2000μm
Resolution	0-999μm
Display Precision	0.1μm (0-99.9μm), 1μm (≥100μm)
Calibration Value	Supported
Minimum Surface Curvature	1.5mm
Minimum Groove Diameter	25mm
Power Supply	2 × 1.5V AAA batteries ( not included )
Test Substrates	Iron, Aluminum
Packing List	1 device,1 instruction manual, 6 calibration sheets, 2 substrates
Calibration Sheets	0.05mm, 0.1mm, 0.25mm, 0.5mm, 1.0mm, 2.0mm

Product Application

FAQ

How do I purchase your goods?

Payment method: T/T payment 30% as deposit. 70% paid before delivery.

How long is the lead time?

Delivery time: If there are stocks available in the warehouse, we may delivery it in several days. Or 60-90 days after receiving the deposit. it depend on the quantity ordered.

Min. order:

- No MOQ for standard or stocking production. - Order a HQ container, price will be more favorable.

What if I don't like the color?

We have different kinds of fabrics/ leathers for your choice, also color of wood finishing can be change.

What can kind of packing of your product?

- Neutral Packing, export standard carton.

How long does it take to ship？

At present, international shipping is not only facing the pressure of historically high price, but also facing a shipping time twice as long as normal. However, through Stock Item Plan, we can ship the order to you within 7-10 days, which can help you save 30days of production and the total timing is same as before. This will be another advantage over your competitors.
